Brand Name :
Particle
Model Number :
NVD3000
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Product Name :

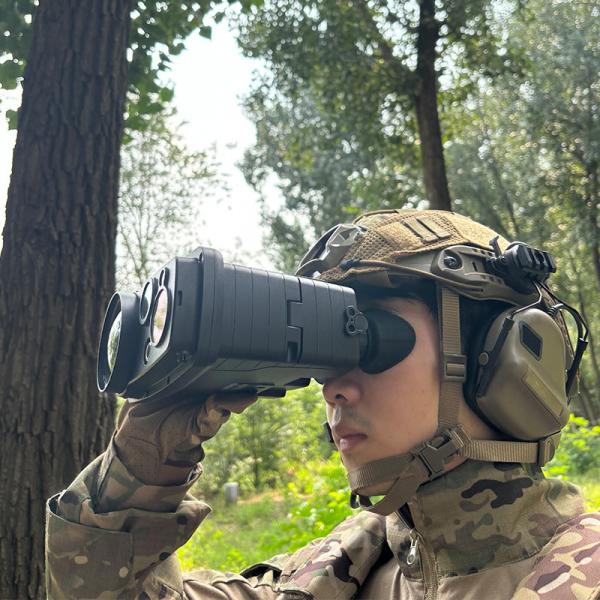

High-Efficiency Multifunctional Handheld Infrared Night Vision Telescope for Surveillance
Color :
Black
Product Category :
Multifunctional Handheld Infrared Night Vision
Application :
Outdoor,Law Enforcement Evidence Collection,Fire Patrol
CMOS Sensor :
2592×1944@2.7um
Customized Support :
OED,ODM,OBM
IR Detector :
640×512@12um
Infrared Recognition Distance :
Mid-Size Vehicle：≥2.8km; Standing Man：≥1km
Infrared Detector :
640×512@12um
Infrared Focal Length :
70mm
FOV :
≥6.3°×5.0°
Visible Light Recognition Distance :
Mid-Size Vehicle：≥6.6km；Standing Man：≥3km
Visible Light Resolution :
2592×1944@2.7um
Visible Light Focal Length :
105mm
Visible Light Focal Length Adaptation Range :
50m～∞
Visible Light :
≥3.2°×2.4°
Laser Ranging :
（1）Minimum Range：≤50m； （2）Maximum Range：≥6km； （3）Precision：≤2m； （4）Accurate Rate：≥98%； （5）Repeat Frequency：≥0.5Hz
Laser Ranging Logic :
Select to display the first or last target capability measured
Laser Ranging Wavelength :
Human eye safety band
Positioning Precision :
≤7m（CEP），≤10m（PE）
Magnetic Azimuth :
≤0.5°（RMS）
Target Positioning Accuracy :
at 2km of the distance，≤20m（CEP）
Diopter :
-4SD～+4SD
Digital zoom :
1×~4×
Working Time（Room temperature） :
≥10h
Memory Storage :
32G
Operating Temperature :
-40℃～+55℃
IP Grade :
IP67
Weight :
≤1.6kg
External Interface Data :
USB
External Interface Video :
PAL
Communication :
RS232
Interface Type :
Reserved Picatinny Rail
Defog :
Support
Price :
$17,000
